Turbine Specifications

GENERAL SPECIFICATIONS

Number of Blades:64 - 8" Airfoil Blades
Design Life:25 Years
Hub Height:70 Meters (230 Feet)
Tower Type:Monopole
Orientation:Upwind

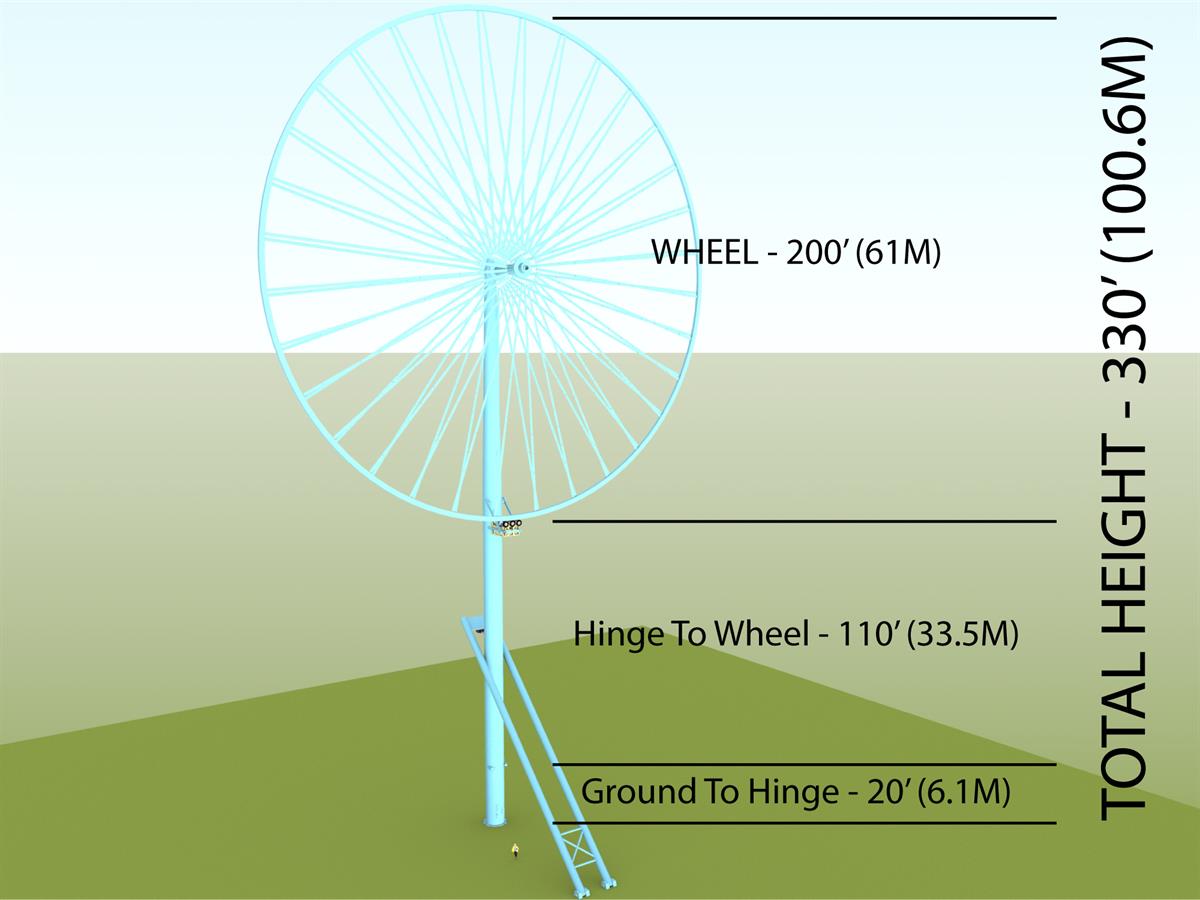

Rotor Dimensions:61 Meters (200' Diameter) (31,400 sq. ft. or 2,900 sq. Meter Sweep Area)
Blades:Automatic Pitch Control
Yaw Control:Electric Yaw Drive
Brake:Compression Brake with Built-In
Fail Safe System

PERFORMANCE

Rated Power:800kW - 50 HZ or 60 HZ
800kW Rated Wind Speed:10.7 Meters per Second (24 mph)
Fixed Rotation Speed:14.6 RPM
Cut in Wind Speed:3.0 Meters per Second (6.7 mph)
Cut Out Wind Speed:20 Meters per Second (45 mph)
Survival Wind Speed
When Upright:
Category 4 Hurricane (135 mph)
Survival Wind Speed
When Lowered:
Category 5 Hurricane (155 mph)

DRIVE TRAIN

No Gearbox or Nacelle
Rim-driven Tires Direct Drive Twin Generators

CONTROL SYSTEM

Controller Type:PLC Logic Based

DELIVERY

Transport Method:Eight Standard Semi-Trailers or Nine 40′ Ocean Going Containers
